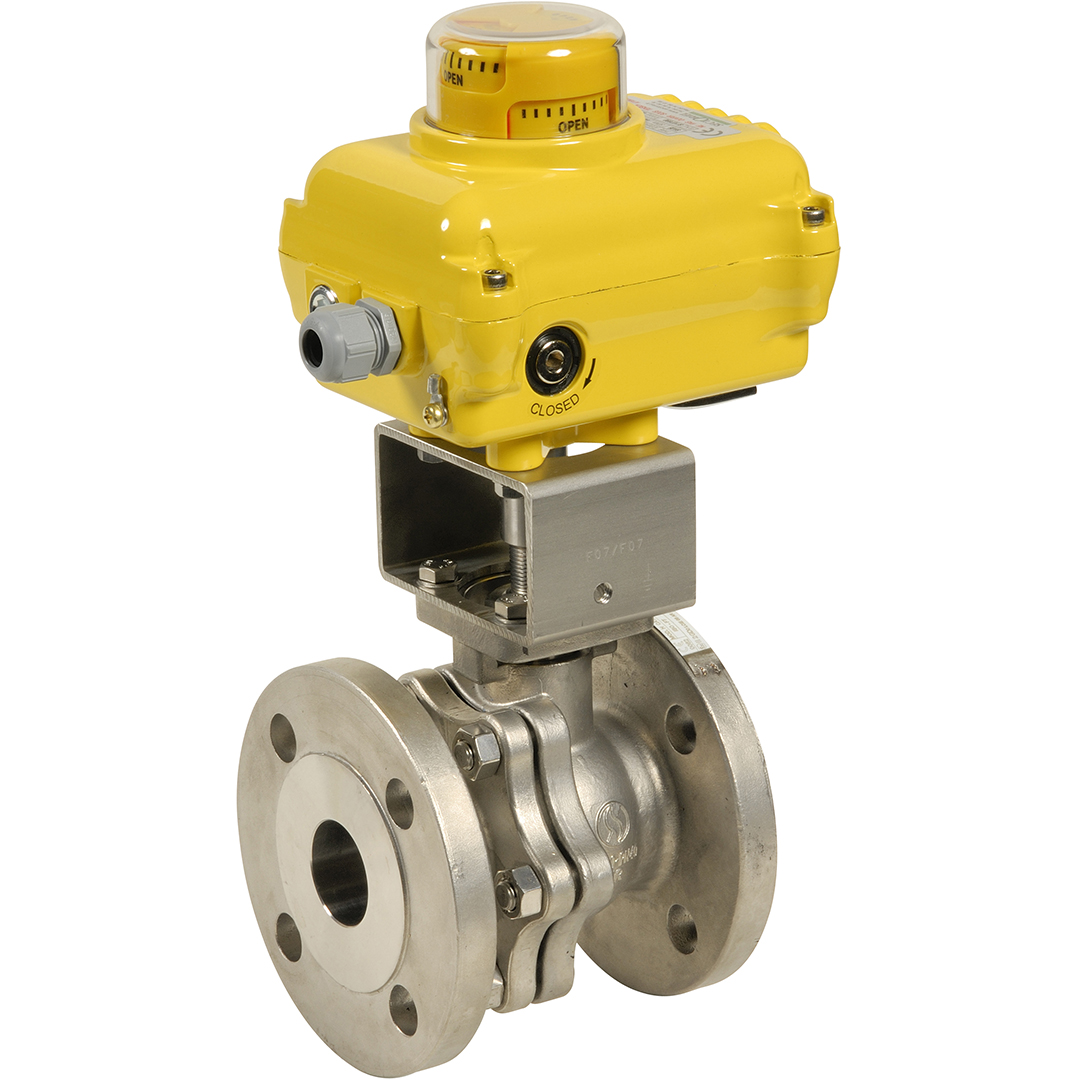

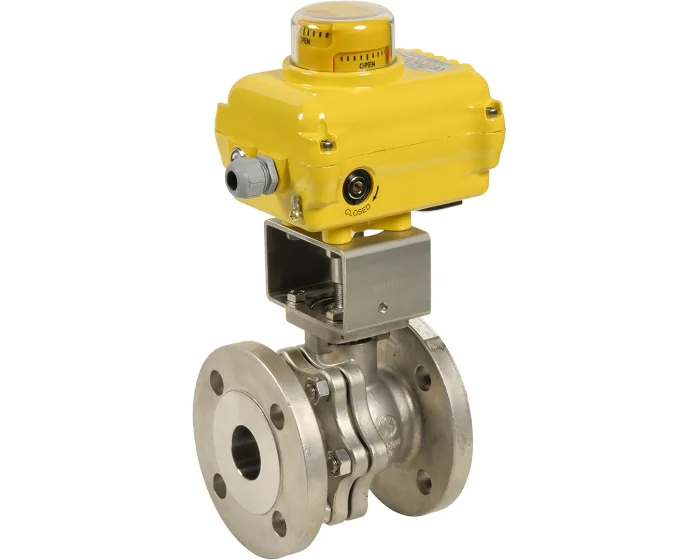

Split body stainless steel ball valve 757 ANSI 150 1/2" + SA05 230V AC
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 108.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 20 |
| Power (W) | 6 |
| Connections | Flanged #150 PN20 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 05 |
| Electric actuator series | SA/NA series |
| Seats | TFM 1600 |
| Operating time (s) | 17.0 |
| Voltage | 230 V AC |
| TS max (°C) | 200 |
| TS min (°C) | -30 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' | 274422023010 | S1005919 |
€641.79
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' | 274423023010 | S1005920 |
€641.79
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' | 274424023010 | S1005921 |
€696.76
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN40 - 1''1/2 | 274426023010 | S1005922 |
€839.50
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' | 274429023130 | S1005923 |
€1,963.36
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN100 - 4'' | 274430023150 | S1005924 |
€2,624.21
(excl. btw)
|
add to cart |
| Flanged #150 PN20 Stainless steel CF8M (1.4408) Full 2-piece body DN150 - 6'' | 274432023160 | S1005925 |
€3,972.16
(excl. btw)
|
add to cart |
